Micro Steam Turbine

Karthik Engineers micro steam turbine generators generate massive electricity, catering to the needs of homes, ranches, hotels, and processing centers.

Miniature Giants of Power

Bangalore, Karnataka, India.

Established in 1985, Karthik Engineers has designed robust, reliable and efficient steam turbine solutions over the years under the brand name” ECO TURBINES”. Karthik Engineers is into various business offerings which include,

ECO Turbines – Micro Steam Turbine Generators – 5kw to 500kw

Steam Turbines – 100kw – 25Mw – Erection to Commissioning

Steam Turbines – 100kw – 25Mw – Manufacture & fitment of Spares

Steam Turbines – Retrofits| Downgrades | Upgrades

Contract Manufacturing for OEM’s

Supply of Micro power plants

Design & Consultancy for IPP, Captive power plants

Miniature in size, with a strength and stamina of a Giant in generating electric power to bring light and relief from outages or with captive consumption to feed the utilities in and around your House, Ranch, Hotel or a Processing Centre.

Eco Turbines are available in 5KW, 10kw, 15kw, 25kw, 50kw & 75kw ratings as standard unit. Higher capacity is available against specific requirement.

ECO TURBINES

(ET)

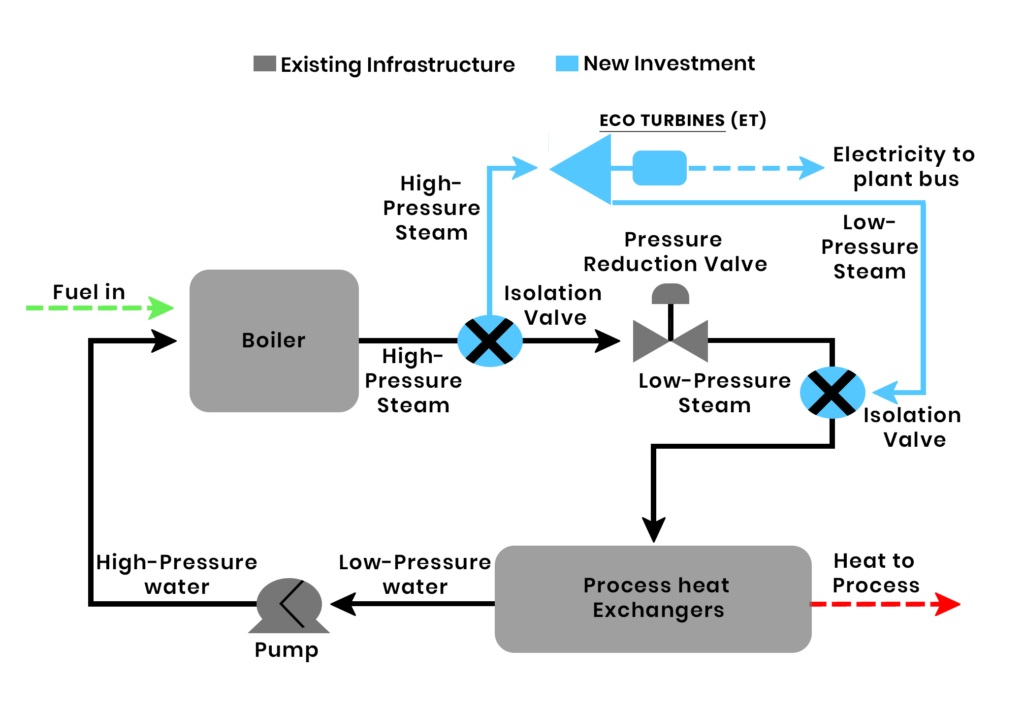

Eco Turbines for Process Industry

The steam pressure to the required process steam pressure could also be achieved by supplying steam through to a ET STG’s and the power developed in these small ET shall be incidental power.

As the steam from the PRV or PRDS shall be diverted, to the ET, and very small gestation period, the power generated thus also qualifies for the carbon credit.

The basic objectives are to utilize the heat energy available in the steam rather than wasting by throttling in PRV’s or PRDS.

Advantages

ET is a small steam turbine.

List ET can replace any PRV’s or PRDS stations.

ET generates incidental power.

ET requires less modification on steam piping.

ET is easy to operate and do not demand continuous manual intervention, except while putting ON and OFF.

ET has lesser number of parts and rugged design to ensure lower maintenance cost.

Typical Parameters Of Eco Trubines

Frames	ET 313	ET 425LX	ET 425	ET 600	ET 900

Turbine Type	Direct Drive	Overhung	Between bearings	Between bearings	Direct drive
Inlet Pressure, BarA, Max	7	45	45	45	45
Inlet Pressure, BarA, Min	7	7	7	7	7
Inlet Temperature, Deg c, Max	165	450	450	450	450
Inlet Temperature, Deg c, Min	165	165	165	165	165
Exhaust Pressure, BarA, Max	1.1	7	7	7	7
Exhaust Pressure, BarA, Min	1.1	1.1	1.1	1.1	1.1
Speed, RPM	3000	7500:1500	7500:1500	7500:1500	3000

Product Portfolio

20kw Steam Turbine Mounted on Steam accumulator

ET 425 – 100kw Steam Turbine Generator

ET425LX – 50KW back pressure turbine skid without Induction generator

Eco Turbines Internals View

Features

Frequent start up and shut down

Quick start capability

Horizontal installation

Single ring turbine rotor

Axial through flow

Straight forward, low maintenance design

Direct drive or equipped with transmission start up and shut down

Back pressure and Condensing Types

Applications

Distilleries

Textiles

Steel and foundries

Rice and Flour Mills

Solvent extraction plants

Solar Thermal

Pulp & Paper

Oil Refinery

Pharmaceutical

Food Processing

Sugar Mills

IPP
